Easy Wrap 2000 B DW

Easy Wrap 2000 B DW is a semi-automatic machine for stretch-film wrapping of palletized loads with the possibility to adjust the film tension by means of a mechanical brake or motorized prestretch.

Machine dimensions L 2620 x W 1650 x H 2700 mm Power supply 220 Volt 1Ph
Weight machine 800 Kg Power supply frequency 50/60 Hz
Turntable diameter 1650 mm Installed power 1.25 Kw
Max product weight 100 Kg Max dimension film roll H 500 mm Ø 280 mm
Turntable speed 0 – 12 (rpm) Film roll thickness 12 – 35 (µm)
Carriage up-down speed 1,4 – 4 (m/min) Secondary roll Foam/pluriball

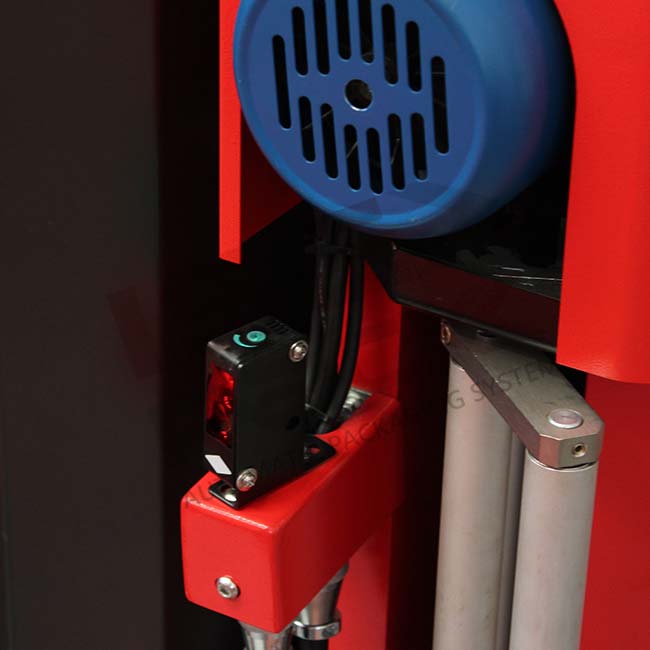

Film tensioning Mechanical brake Carriage Photoeye to detect height std
Max pallet dimensions L 2000 x W 50-200 x H 2200 mm Forklifting Front and back
