Easy Wrap 2000 BC

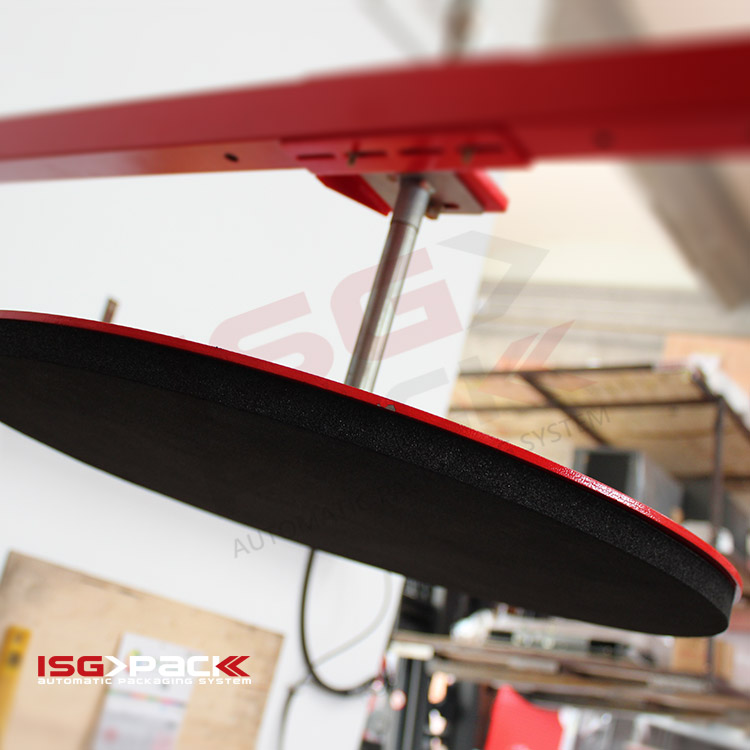

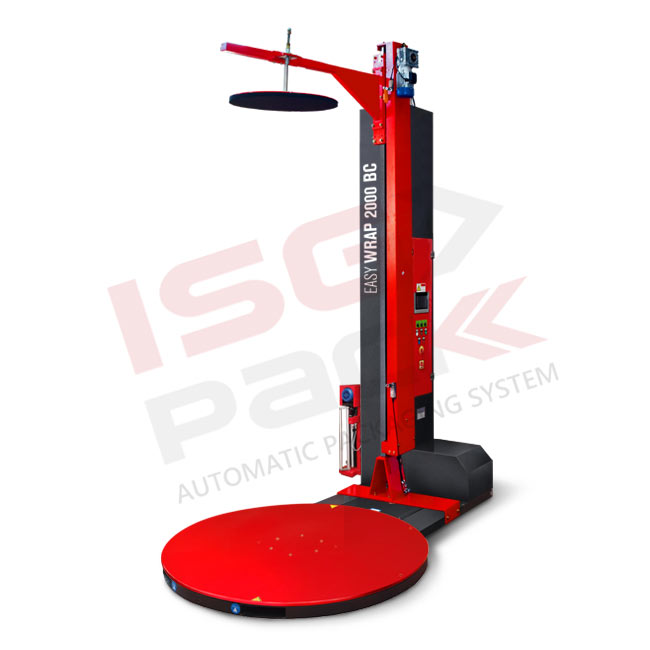

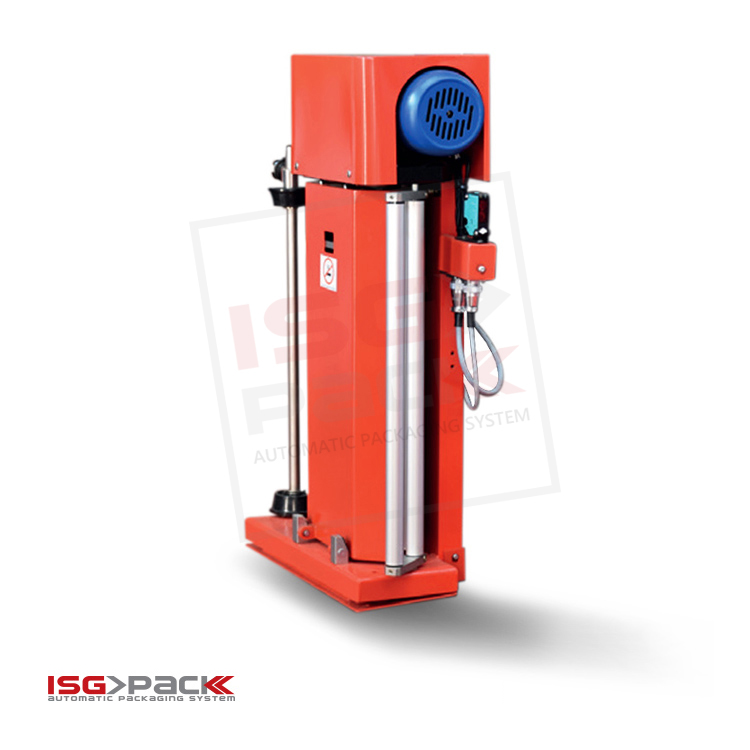

Model Easy Wrap 2000 BC is a semi-automatic machine for stretch-film wrapping of palletized loads with top press electrical unit. Possibility to adjust the film tension by means of a mechanical brake or motorized.

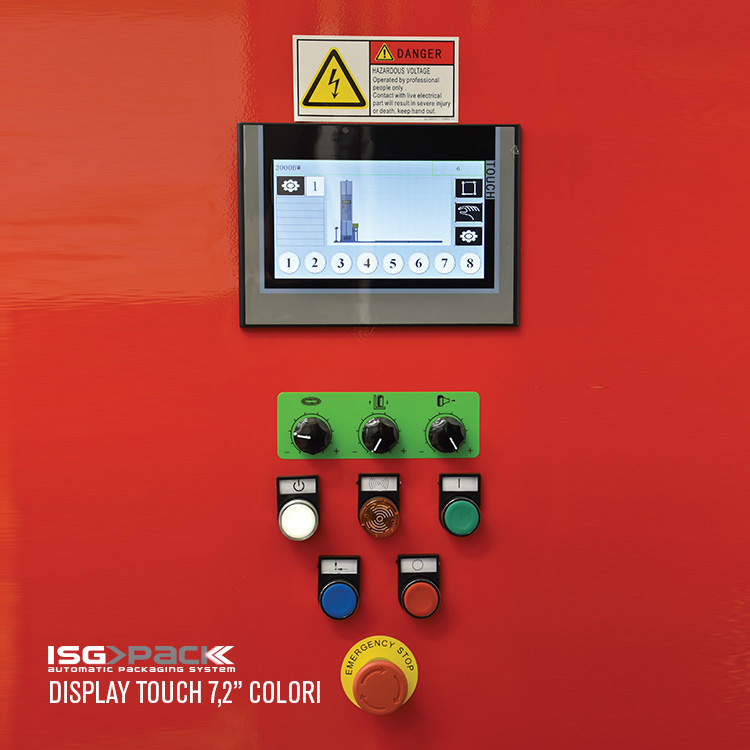

prestretch, soft start of the turntable by inverter, manual or automatic working cycle, the possibility to adjust the number of upward and downward rounds of the pallet. The machine is equipped with PLC and digital touch screen display 7,2’’.

Machine dimensions L 2600 x W 1750 x H 2700 mm Power supply 220 Volt 1Ph
Weight machine 700 Kg Power supply frequency 50/60 Hz
Turntable diameter 1650 mm Installed power 1.25 Kw
Max product weight 2000 Kg Max dimension film roll H 500 mm Ø 280 mm
Turntable speed 0 – 12 (rpm) Film roll thickness 12 – 35 (µm)
Carriage up-down speed 1,4 – 4 (m/min) Max roll film weight 20 Kg

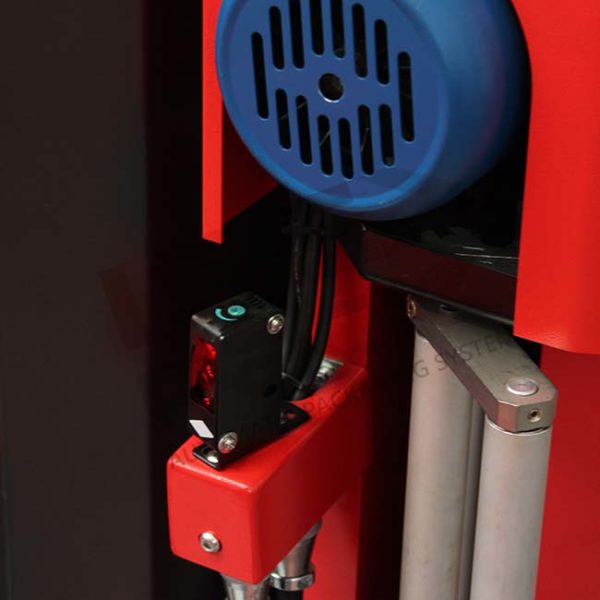

Film tensioning Mechanical brake Carriage Photoeye to detect height std
Max pallet dimensions L 1000 x W 1200 x H 2000 mm Forklifting Front and back
