Easy Wrap 2000 BW

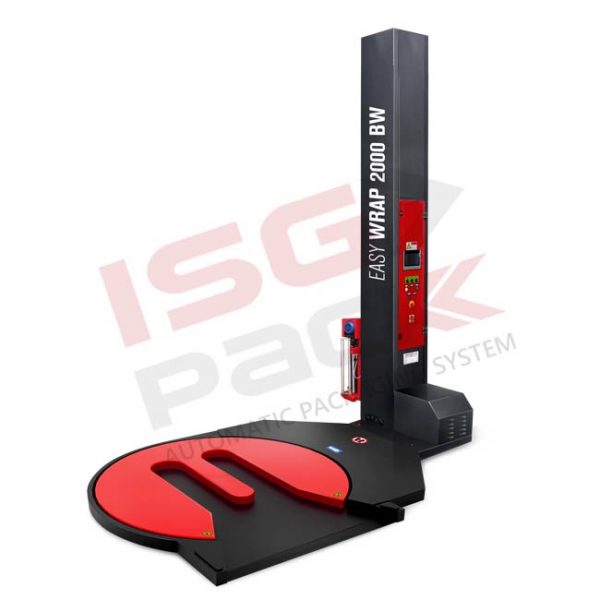

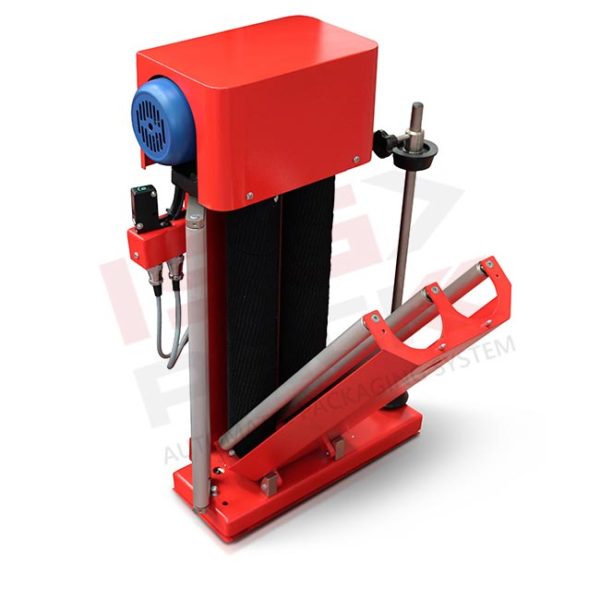

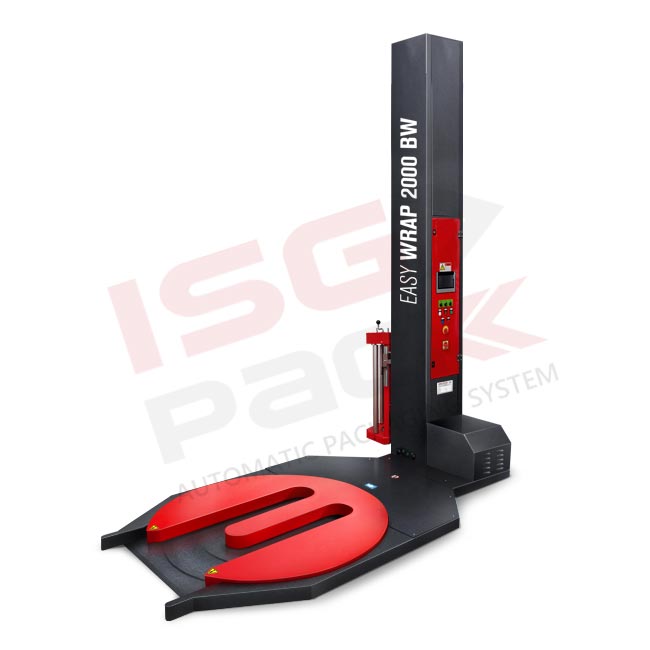

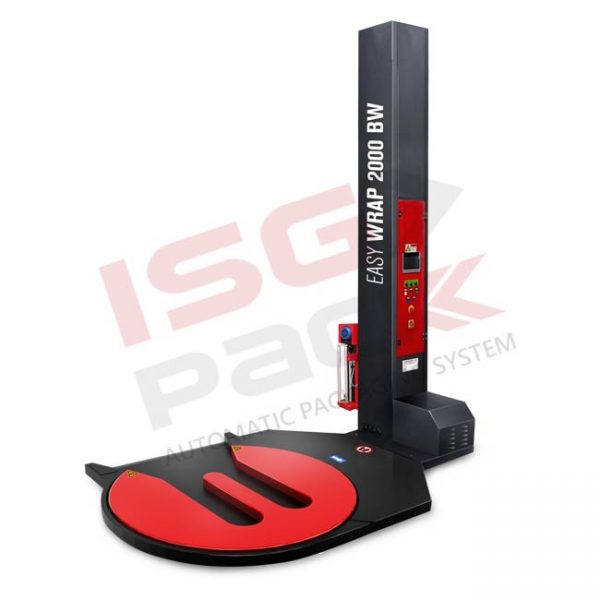

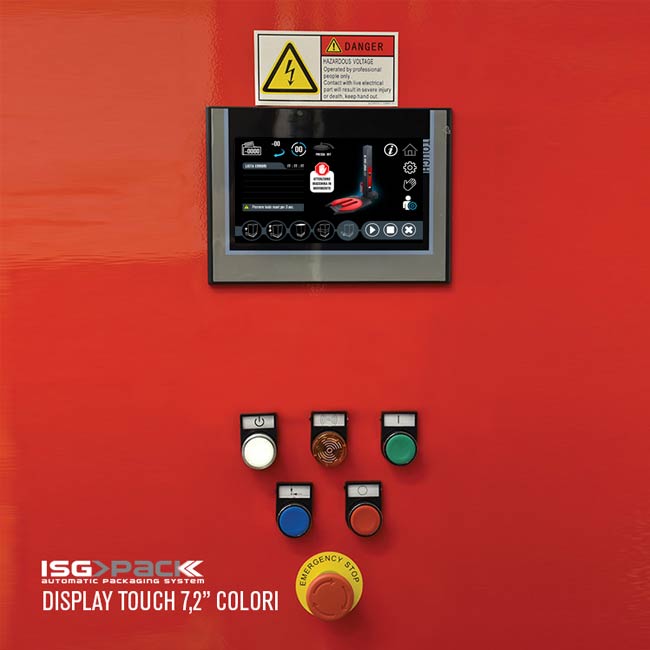

Easy Wrap 2000 BW is a machine designed for the wrapping of palletized loads with access of the load on the plate through transpallet. Equipped with motorized prestretch with fixed ratios and 7.2 "color touch screen control panel.

Machine dimensions   Power supply 220 Volt 1Ph
Weight machine 600 Kg Power supply frequency 50/60 Hz
Turntable diameter 1650 mm Installed power 1 Kw
Max product weight 1200 Kg Max dimension film roll H 500 mm Ø 280 mm
Turntable speed 0 – 12 (rpm) Film roll thickness 12 – 35 (µm)
Carriage up-down speed 1,4 – 4 (m/min) Film roll max weight 16 kg

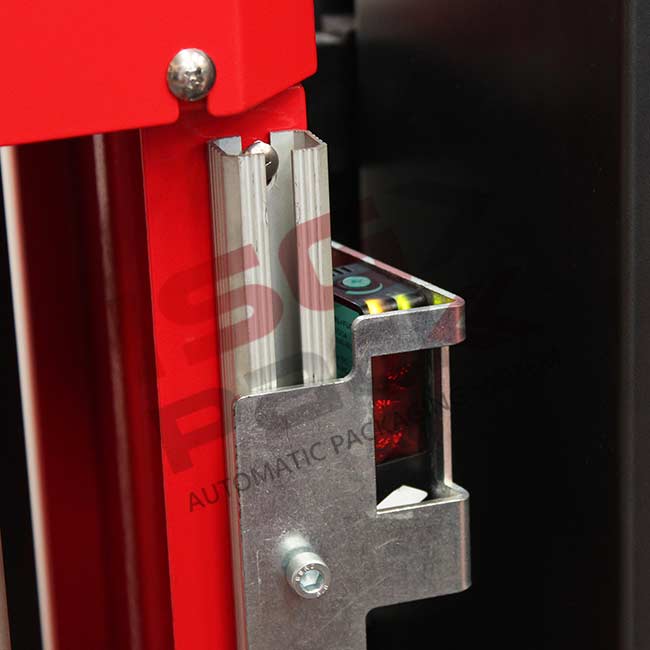

Film tensioning Mechanical brake Carriage Photoeye to detect height std
Max pallet dimensions L 1000 x W 1200 x H 2200 mm Forklifting back
