Easy Wrap 2000 PA

Easy Wrap 2000 PA is a semi-automatic machine for stretch-film wrapping of palletized loads with the possibility to adjust the film tension by means of a mechanical brake.

Machine dimensions L 2600 x W 1650 x H 2400 mm Power supply 220 Volt 1Ph
Weight machine 600 Kg Power supply frequency 50/60 Hz
Turntable diameter 1650 mm Installed power 1 Kw
Max product weight 2000 Kg Max dimension film roll H 500 mm Ø 280 mm
Turntable speed 0 – 12 (rpm) Film roll thickness 12 – 35 (µm)
Carriage up-down speed 1,4 – 4 (m/min) Film roll max weight 16 kg

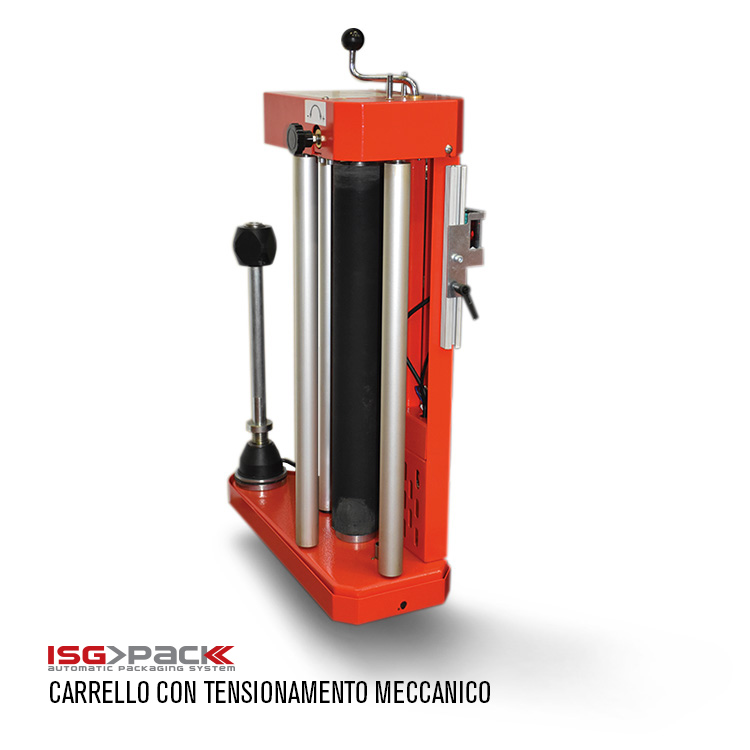

Film tensioning Mechanical brake Photoeye to detect height std
Max pallet dimensions L 1000 x W 1200 x H 2200 mm Forklifting Front and back
