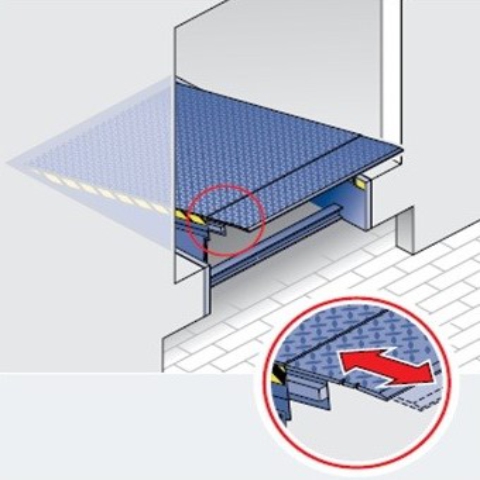

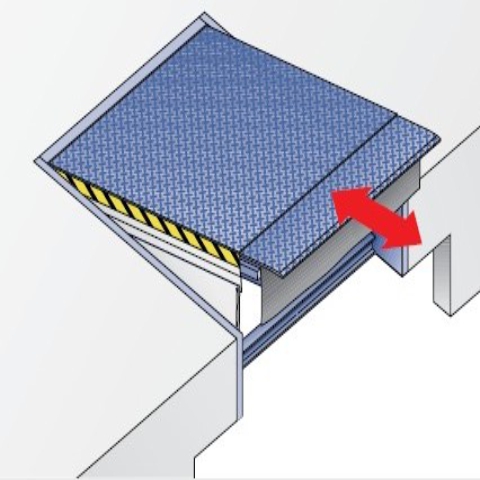

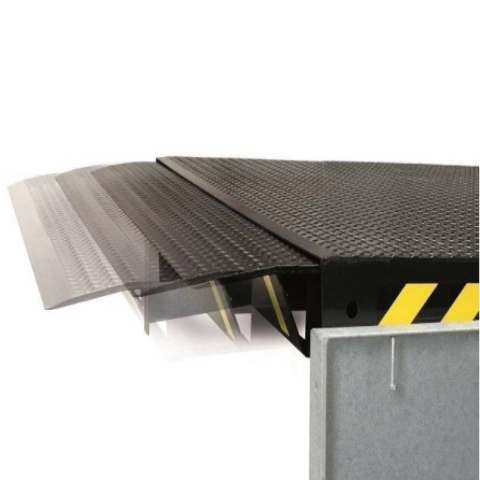

The telescopic lip plate is 0.5-1.2m, which is most suitable for the cold chain loading and unloading area, or the loading and unloading platform with thermal insulation requirements. The super long overlapping lip plate can make the platform installed behind the thermal insulation sliding door, and keep the cold chain section in the cold chain transportation process, which greatly saves energy.a
The telescopic and lifting strokes of the lip plate of the telescopic loading and unloading platform are continuously adjustable, with an accuracy of up to 25px, which is suitable for loading and unloading vehicles full of goods. Even if the rear of the freight car has been filled with pallets, leaving only little lap space for the platform lip, the loading can be completed normally.
| Dynamic load | Panel thickness | Panel reinforcement | Thickness of mouth plate | Base frame | Static load | Use forklift range |
| 6 tons | 6 mm | 4 mmL steel | 12 mm | 60 channel steel | 8 tons | 2.5 tons plug-in |
| 8tons | 8 mm | 4 mmL steel | 16 mm | 100 channels | 11 tons | 3.5 ton plug-in |
| 10 tons | 8 mm | 14 # I-beam | 16 mm | 100 channels | 13 tons | 4.5 tons plug-in |
| 15 tons | 8 mm | 14 # I-beam | 16 mm | 100 channels | 18 tons | 6.7tons plug-in |
